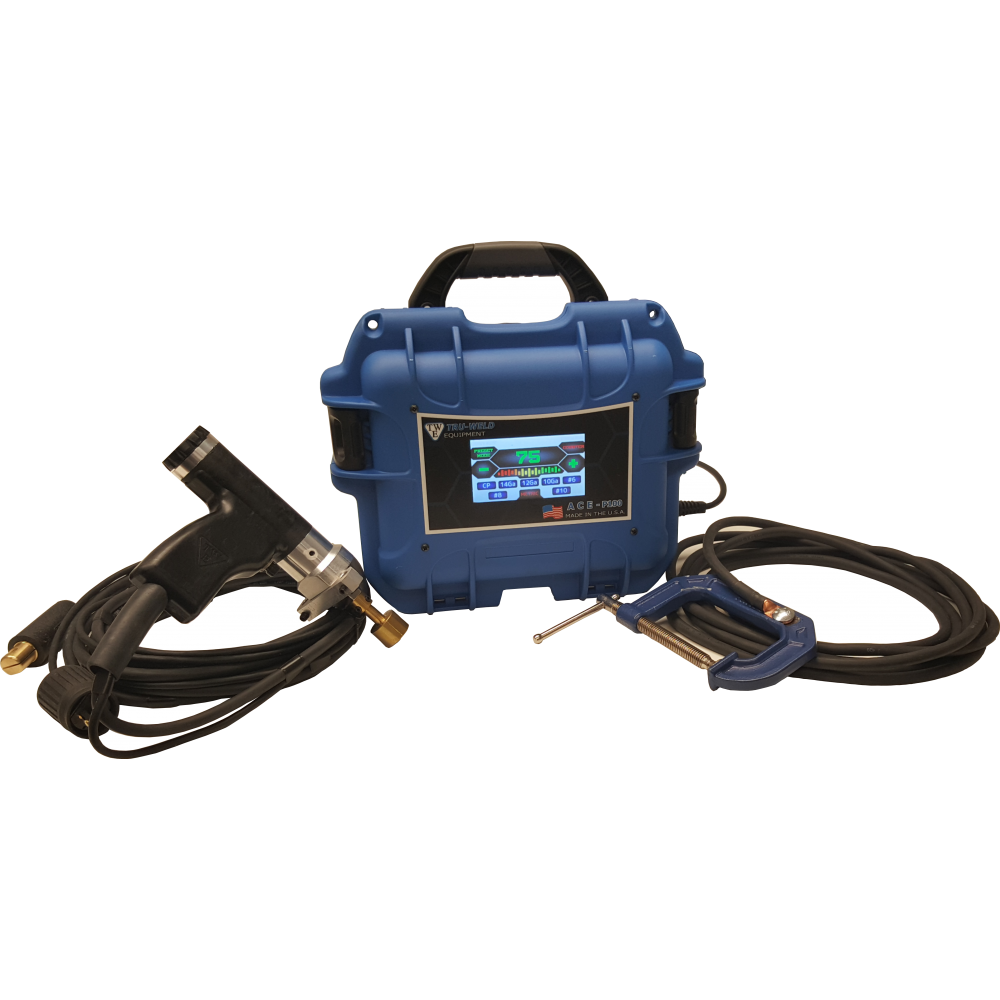

ACE-P100 Capacitor Discharge Pin Welder

The ACE-P100 incorporates the latest technology into a compact, rugged, and portable CD pin welder. With an up-dated user interface and new system design, this unit has the capacity to weld pins up to 10-gauge and CD studs up to #10 FASTER THAN EVER.

ACE-P100 Manual

Features/Included

• NEW FEATURE— Intuitive Touchscreen Interface with Preset values for fast, accurate, and repeatable weld settings
• NEW FEATURE— Set-Point Discharge: Unit discharges directly to a new set point without needing to discharge completely
• NEW FEATURE— Universal Input Voltage: Plug and play, no need to re-tap the machine for 110V or 220V input voltages
• NEW FEATURE— Low input voltage capability enables operation with long extension cords
• NEW FEATURE— Contact and Trigger Indicators for fast troubleshooting of hand tool and weld cable maintenance issues
• NEW FEATURE— Thermal and Voltage protection indicators to protect the unit from damage due to overheating or poor input power
• Increased airflow for improved efficiency and duty cycle
• Rigid internal construction eliminates the possibility of components coming loose during rough handling or operations
• The ACE-P100 pin welder is mounted in a rugged outer case for greater durability and appearance

ACE-P100 Specifications
